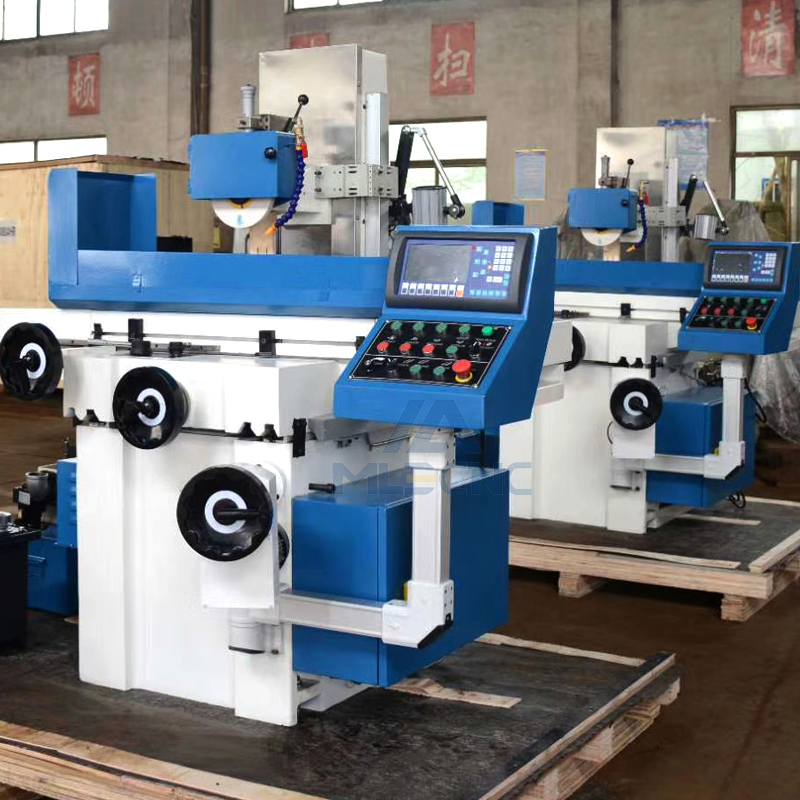

Higher Precision Hydraulic Automatic My1230 Flat Hydraulic Metal Surface Grinder Machine
MY1230 MY1022 MY820
· High-Accuracy Structure: Ensures precise grinding for high-quality results.
· Durable Construction: Built to last with sturdy materials and robust design.
· Wide Application Range: Suitable for various surfaces and complex shapes.
· Efficient Cooling System: Maintains optimal temperature for consistent performance.

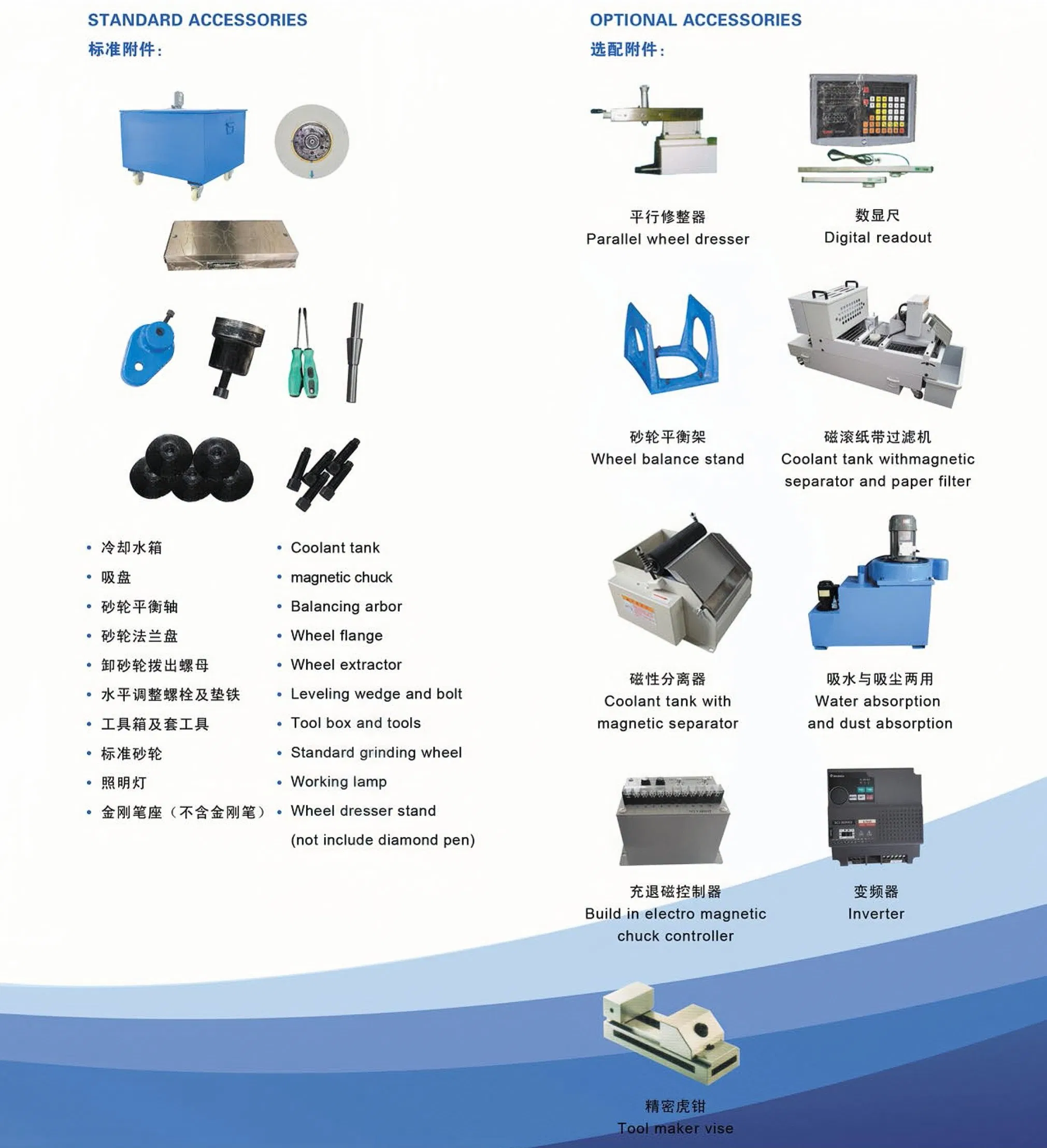

· Comprehensive Accessories Included: Everything needed for smooth operation.
· Durable Construction: Built to last with sturdy materials and robust design.
· Wide Application Range: Suitable for various surfaces and complex shapes.
· Efficient Cooling System: Maintains optimal temperature for consistent performance.
· Comprehensive Accessories Included: Everything needed for smooth operation.
Quantity:
Application:
* The Surface Grinder is reasonable in structure, good rigidity, beautiful appearance, convenient operation
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical
commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
* The surface grinding machine using precision plastic guide surface and precision scraping, grinding imported hydraulic
transmission, drive by synchronous
* The hydraulic surface grinder main mechanical valve is a special valve grinder, is divided into two parts, the mechanical
commutation control, throttle control. Throttle control part and unloading function. can realize the station start and stop.
* Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Parameters of the MY series:
| Item | Unit | MY820 | MY1022 | MY1230 | |
| Worktable size (L*W) | mm | 480*200 | 540*250 | 750*300 | |
| Worktable traverse (L*W) | mm | 520*220 | 560*260 | 780*320 | |
| Number of T-slot | mm | 1*14 | 1*14 | 1*14 | |
| Distance from worktable to spindle center | mm | 440 | 490 | 520 | |
| Wheel size (OD*W*ID) | mm | 200*20*31.75 | 200*20*31.75 | 300*30*76.2 | |
| Wheel Speed 50HZ | rpm | 2850 | 2850 | 1450 | |
| Worktable longitudinal speed | m/min | 3-20 | 3-20 | 3-20 | |
| Table horizontal feed | Intermittent (stepless) | m/time | 0-5 | 0-5 | |
| Handwheel rotates | mm | 2.5 | 4 | 4 | |
| Hanwheel each grid | mm | 0.02 | 0.02 | 0.02 | |
| Vertical feed | Handwheel rotates | mm | 1.25 | 1.25 | 2 |
| Hanwheel each grid | mm | 0.01 | 0.01 | 0.01 | |
| Spindle motor | kw | 1.5 | 1.5 | 2.2 | |
| Hydraulic motor | kw | 1.5 | 1.5 | 2.2 | |
| Cooling pump motor | w | 40 | 40 | 40 | |
| Working pressure | mpa | 3 | 3 | 4 | |
| Fuel tank capacity | L | 80 | 80 | 100 | |
| The maximum flow | L/min | 18 | 18 | 20 | |
| Surface parallelism | mm | 300/0.004 | 300/0.005 | 300/0.005 | |
| Surface roughness | um | Ra0.32 | Ra0.32 | Ra0.32 | |
| Weight | kg | 767/867 | 890/980 | 1450/1550 | |
| Packing size (LxWxH) | cm | 168*114*176 | 168*122*176 | 196*148*185 | |
For more detailed customization plans, please feel free to contact us!
